Add WireGuard Configuration

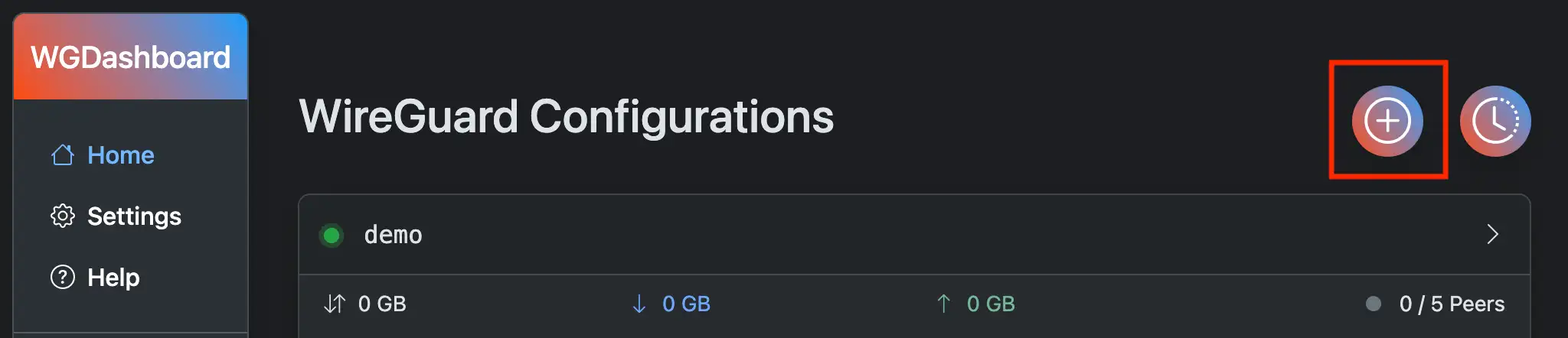

To add a new WireGuard Configuration, simply click the big "+" button on the top right of the Home page

Then you will see a form, with the following fields need to input. Specifications came from Some Unofficial WireGuard Documentation

• Name
  • This will be the name of your WireGuard Configuration, the rules are following:
    1. Can't use existing WireGuard configuration's name
    2. Must match the regex ^[a-zA-Z0-9_=+.-]{1,15}$
• Private Key & Public Key
  • Both keys are pre-generated. If you wish to use your own key pair, simply paste your Private Key into the input, and it will generate the Public Key automatically.
  • To re-generate a key pair, simply click the blue refresh button on the right of Private Key input.
• Listen Port
  • Port that your configuration will be listened to. Can't be using the same port as other configuration.
• IP Address/CIDR
  • This defines what address range each peers will be. For example, 10.0.0.1/24 means peers can allocate IP address from 10.0.0.2 to 10.0.0.254
  • Of course, you can also define multiple subnets, like 10.0.0.1/24,2001:DB8::/64
• Optional Settings
  • PreUp
    • Shell commands to run before the configuration is turned on
  • PreDown
    • Shell commands to run before the configuration is turned off
  • PostUp
    • Shell commands to run after the configuration is turned on
  • PostDown
    • Shell commands to run after the configuration is turned off
