Add WireGuard Configuration Peers

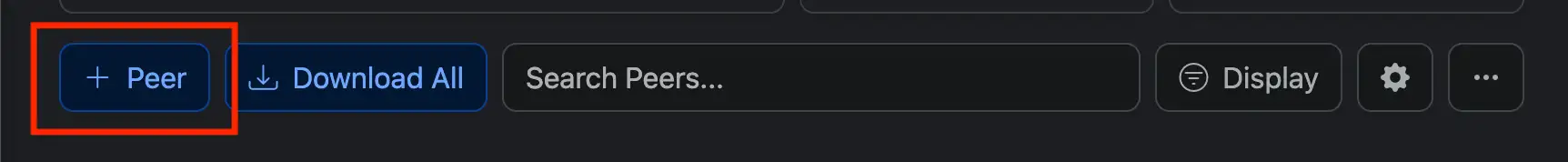

To add a peer, simply click "+ Peer" button in your configuration

Once you clicked the button, you will see a form similar to adding a configuration, and will need to input the following fields.

• Name
  • This is not a required field. You can leave it empty to give the peer a name you like.
• Private Key & Public Key
  • This is required field. Both Private and Public Key will be auto-generated. If you would like to use your own key pair, simply toggle the switch of "Use your own Private and Public Key"
• Allowed IPs
  • The IP addresses of this peer. It will be auto-generated with the first available IP Address. You can add more IP Address by clicking "Pick Available IP" button.
  • If you wish to add custom IP Address, you can also type it in the input below.
• Endpoint Allowed IPs
  • The IP Address range you want to forward your traffic. For example, if you just want to forward your subnet traffic, you can set it to match configuration's Allowed IPs.
  • But if you want to forward all traffic through WireGuard, you can set it to 0.0.0.0/0, ::/0
• DNS
  • The DNS servers that this peer will be using.
• Pre-Shared Key
  • If you want an extra layer of security between your server and peer, you can toggle this feature to let WireGuard to additional symmetric encryption.
  • More information: WireGuard: Next Generation Kernel Network Tunnel, 5.2 - Optional Pre-shared Symmetric Key Mode
• MTU
  • The MTU is automatically determined from the endpoint addresses or the system default route, which is usually a sane choice.
• Persistent Keepalive
  • If the connection is going from a NAT-ed peer to a public peer, the node behind the NAT must regularly send an outgoing ping in order to keep the bidirectional connection alive in the NAT router's connection table.
